ScreensVorex 8 Plastic
VOR-08-PS / VOR-08-PF

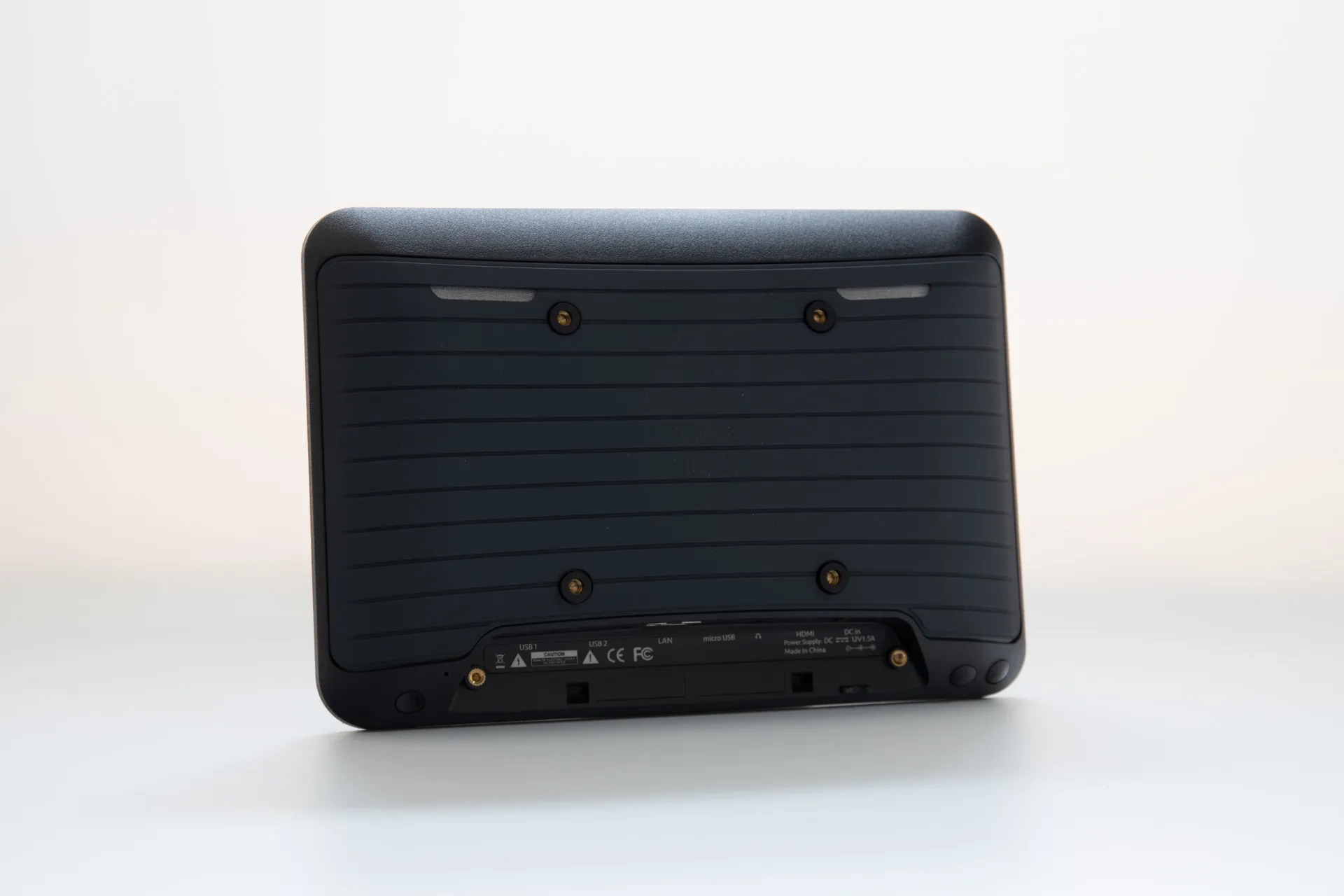

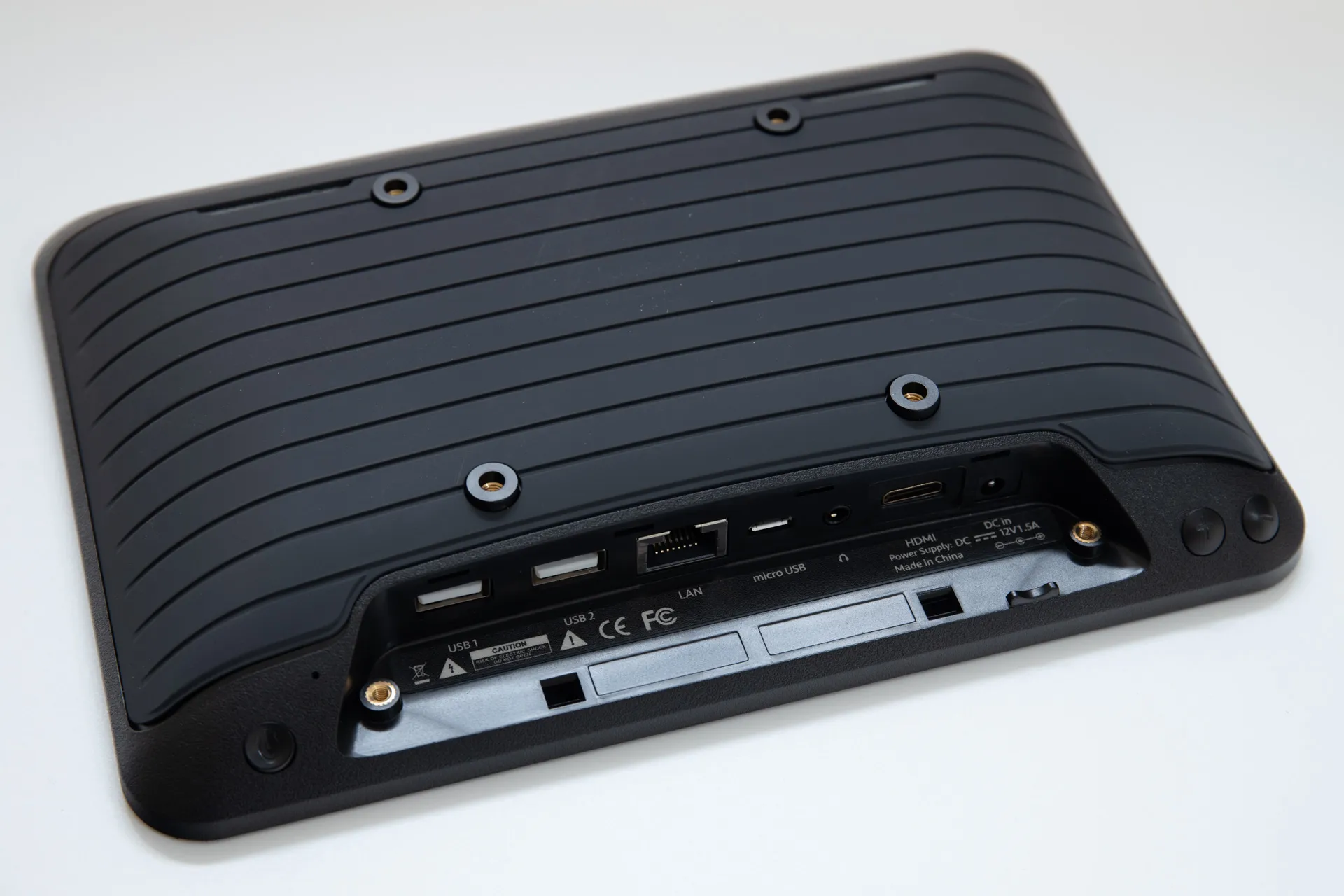

Vorex 8 Plastic
An 8 inch Android touchscreen in a black plastic case. Surface mount, or flush mount with trim. Powers from 12 V DC or over PoE+.
Add to order
Trade price confirmed with your order
We confirm price, stock and delivery by email within one working day. Nothing is charged online.
Prices and stock: +44 (0)1252 669317, or ask for trade prices.
8 IN1280 x 800
IP54front panel
RK32881.8 GHz
ANDROID 10Vorex App
POE+on the LAN port
12 V DCadaptor included
Fits a 225 x 160 mm cut-out.
Fix it on the surface, or cut the door and flush mount it with the trim and 4 mm bolts supplied. Surface mount: 212 x 147 x 28 mm, no cut-out.
The cut-out is from the manual only and is to confirm against a built unit.
Specifications
From the VOR-08-PS datasheet (Android 10, Rev 2.1, Jun 2022) and the matching manual.
Display
- Screen
- 8 in IPS
- Resolution
- 1280 x 800
- Brightness
- 300 cd/m²
- Contrast
- 1000:1
- Response time
- 5 ms
- Touch
- Capacitive, 5 point
Connections
- Network
- RJ45, Wi-Fi 802.11 b/g/n, Bluetooth 4.2

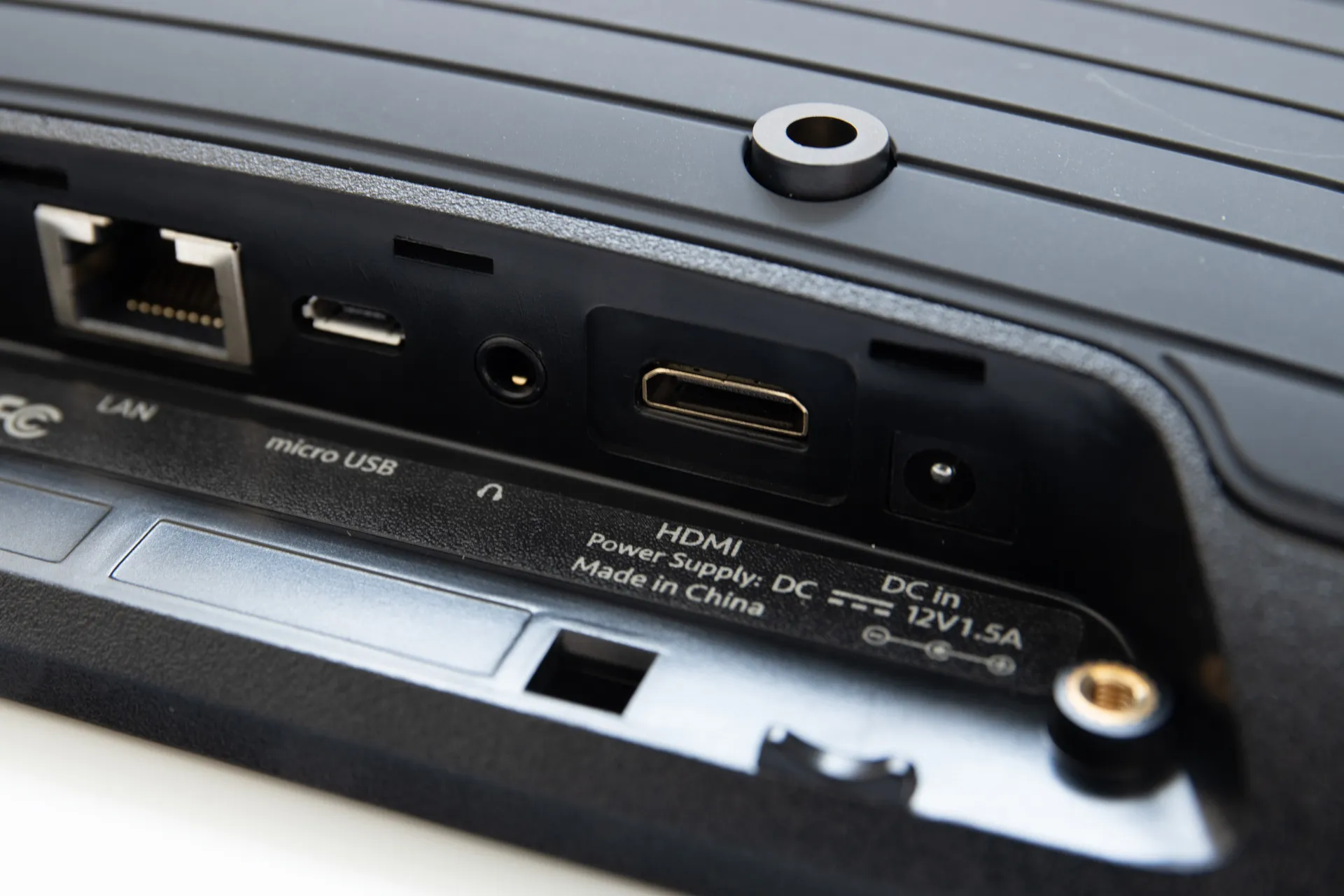

- Ports
- 2 x USB 2.0, 1 x HDMI, micro USB OTG, SD card
- Audio
- 2 x 3 W speakers
Mechanical
- Outline, flush
- 262 x 198 mm
- Outline, surface
- 212 x 147 x 28 mm
- Panel cut-out
- to confirm1
- Case
- Plastic, black
- Mounting
- Surface, or flush with trim and 4 mm bolts; VESA 75 optional
- Weight
- 0.587 kg without packaging or power supply
Computer
- Processor
- RK3288, quad core A17, 1.8 GHz
- Memory
- 2 GB
- Storage
- to confirm2
- Software
- Android 10, Vorex App, kiosk lock
Power and environment
- Power
- 12 V DC 1.5 A, adaptor for 100 to 230 V AC
- PoE
- PoE+ IEEE 802.3at, class 4, on the LAN port
- Working temperature
- to confirm3
- Ambient
- -10 to 60 °C
- Front rating
- IP54, front panel only
Approvals and warranty
- Approvals
- CE, FCC, RoHS
- Warranty
- 12 months
To confirm with Vorex
- Panel cut-out: 225 x 160 mm. Only the manual gives it.
- Storage: 16 GB eMMC, SD card. The SD limit is 32 or 64 GB.
- Working temperature: 0 to 45 °C. The old website says 0 to 50.
Works with
Any controller that serves an HTML5 page, including:
