ScreensVorex 15 Metal

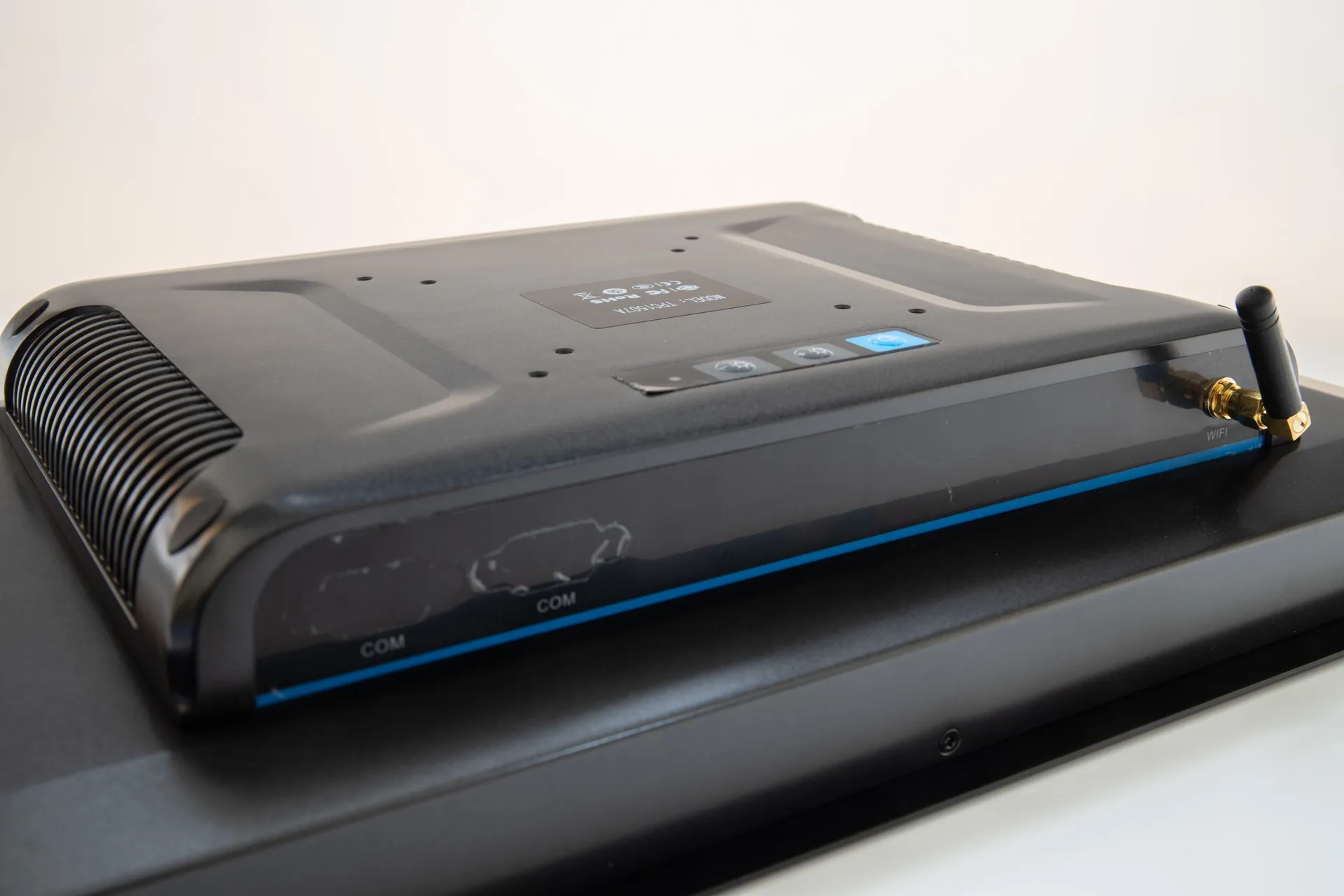

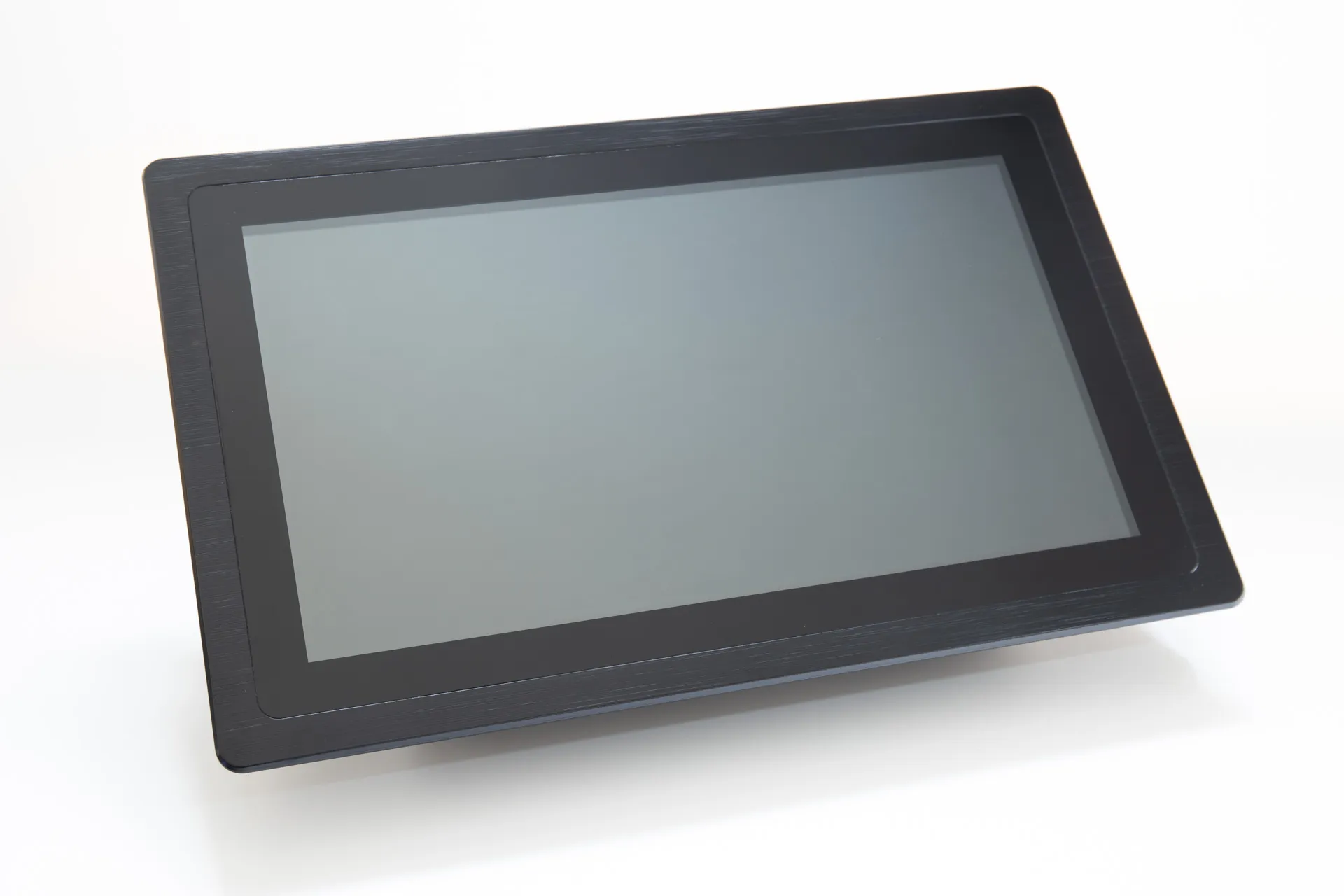

Vorex 15 Metal, view 1 of 4
VOR-15.6-M-A

Vorex 15 Metal

A 15.6 inch Full HD Android touchscreen in a metal case, for large plant pages and energy centres. Shows any controller that serves an HTML5 page, including Niagara green bar time schedules.

Add to order

Trade price confirmed with your order

We confirm price, stock and delivery by email within one working day. Nothing is charged online.

Download the datasheet

Prices and stock: +44 (0)1252 669317, or ask for trade prices.

15.6 IN1920 x 1080
IP65front panel
RK3399E2.0 GHz
ANDROID 9Vorex App
2 x RJ45Wi-Fi 802.11 b/g/n
12 V DCadaptor included

Cut-out size to confirm.

Cut the door, offer the screen up from the front, and four clamps hold it from behind.

Vorex documents give three different cut-outs for this model: 385 x 234 mm, 400 x 250 mm and 410 x 260 mm. The drawing shows the shape only until Vorex confirms one.

Outline drawing, datasheet page 3 Ask for the DXF
CUT-OUT: TO CONFIRM TO CONFIRM OVERALL SIZE: TO CONFIRM FRONT VIEW, MM

Specifications

From the VOR-15.6-M-A datasheet (Android 9, Rev 2.0, Jun 2022) and the matching manual.

Display

Screen
15.6 in IPS, 16:9
Resolution
1920 x 1080
Brightness
to confirm1
Contrast
to confirm2
Viewing angle
89 / 89 / 89 / 89
Touch
Capacitive, 10 point

Connections

Network
2 x RJ45, Wi-Fi 802.11 b/g/n
Ports
to confirm3
Audio
2 x 3 W speakers

Mechanical

Overall
to confirm4
Panel cut-out
to confirm5
Case
to confirm6
Mounting
Panel clips, or VESA 75 / 100
Weight
5.0 kg boxed with power supply

Computer

Processor
RK3399E, 2.0 GHz, 2 x A72 + 4 x A53
Memory
to confirm7
Storage
to confirm8
Software
Android 9, Vorex App, kiosk lock

Power and environment

Power
12 V DC, adaptor for 100 to 230 V AC
Working temperature
to confirm9
Ambient
-10 to 60 °C
Front rating
IP65, front panel only

Approvals and warranty

Approvals
CE, FCC, RoHS
Warranty
12 months

To confirm with Vorex

  1. Brightness: 300 cd/m². The data sheet says 350.
  2. Contrast: 500:1, 600:1 and 1000:1 are all published.
  3. Ports: 2 x USB 2.0, 1 x HDMI, SD card. 9 pin serial or VGA are listed in places.
  4. Overall: 420 x 270, 420 x 289 and 420 x 250 mm are published.
  5. Panel cut-out: 385 x 234, 400 x 250 and 410 x 260 mm are published.
  6. Case: Metal, black. The documents say aluminium and steel in different places.
  7. Memory: 4 GB. The old website says 2 GB.
  8. Storage: 32 GB, microSD up to 64 GB. The old website says 16 GB.
  9. Working temperature: 0 to 45 °C. The old website says 0 to 50.

Windows 10 version: Made to order with Windows 10 Pro (32 bit) on an Intel Celeron J1900. There is no data sheet for the Windows version yet, so its specification is to confirm.

Downloads for VOR-15.6-M-A

Datasheet4 pages Android 9, Rev 2.0 Jun 2022 PDF 180 KB Open
Installation and user manual20 pages Android 9, v2.2 Jun 2023 PDF 626 KB Open
Installation and user manualEarlier version Android 9, v2.1 Jul 2022 PDF 625 KB Open
DatasheetEarlier version Android 8.1 May 2022 PDF 180 KB Open
Installation and user manualEarlier version Android 8.1, Rev 1.1 May 2022 PDF 461 KB Open

Cut-out drawings in DXF and 3D models in STEP are not published yet. Ask us and we send what we have.

Works with

Any controller that serves an HTML5 page, including:

Trend IQTridium NiagaraDistechiSMACylonInnotech OmniCentraLineDEOSEasyIO
