ScreensVorex 10 Metal
Vorex 10 Metal, view 1 of 4
VOR-10.1-M-A

Vorex 10 Metal

A 10.1 inch Android touchscreen in a metal case, for the panel door or the wall. Shows any controller that serves an HTML5 page.

Add to order

Trade price confirmed with your order

We confirm price, stock and delivery by email within one working day. Nothing is charged online.

Download the datasheet

Prices and stock: +44 (0)1252 669317, or ask for trade prices.

10.1 IN1280 x 800
IP65front panel
RK3399E2.0 GHz
ANDROID 9Vorex App
WI-FI802.11 b/g/n
12 V DCadaptor included

Fits a 275 x 175 mm cut-out.

Cut the door, offer the screen up from the front, and four clamps hold it from behind. Surface mounting uses a VESA bracket; the front then stands about 50 mm off the wall.

Outline drawing, datasheet page 3 Ask for the DXF
CUT-OUT 275 175 OVERALL 294 x 195, DEPTH 48.5 FRONT VIEW, MM

Specifications

From the VOR-10.1-M-A datasheet (Android 9, Rev 2.0, May 2022) and the matching manual.

Display

Screen
10.1 in IPS, 16:10
Resolution
1280 x 800
Brightness
to confirm1
Contrast
to confirm2
Viewing angle
89 / 89 / 89 / 89
Touch
Capacitive, 10 point

Connections

Network
to confirm3
Ports
to confirm4
Audio
2 x 3 W speakers

Mechanical

Overall
294 x 195 x 48.5 mm
Panel cut-out
275 x 175 mm
Case
to confirm5
Mounting
Panel clips (4), or VESA 75 / 100
Weight
3.0 kg boxed with power supply

Computer

Processor
RK3399E, 2.0 GHz, 2 x A72 + 4 x A53
Memory
to confirm6
Storage
to confirm7
Software
Android 9, Vorex App, kiosk lock

Power and environment

Power
12 V DC, adaptor for 100 to 230 V AC
Working temperature
to confirm8
Ambient
-10 to 60 °C
Front rating
IP65, front panel only

Approvals and warranty

Approvals
CE, FCC, RoHS
Warranty
12 months

To confirm with Vorex

  1. Brightness: 300 cd/m². The data sheet says 350.
  2. Contrast: 600:1. The data sheet says 800:1.
  3. Network: RJ45, Wi-Fi 802.11 b/g/n. The data sheet lists one RJ45 and the manual two.

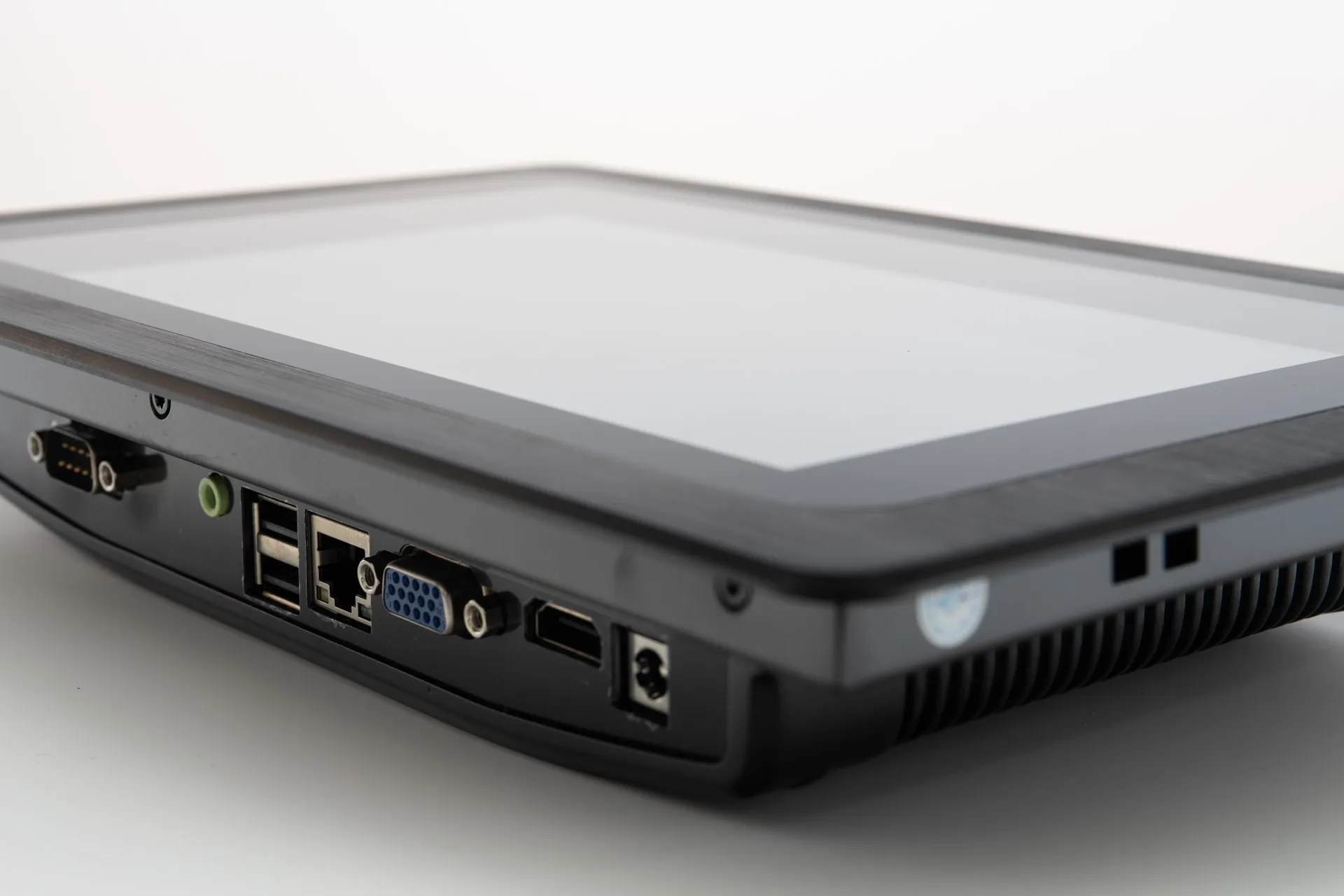

  4. Ports: 2 x USB 2.0, 1 x HDMI, SD card. USB-C and 9 pin serial are listed in places.
  5. Case: Metal, black. The documents say aluminium and steel in different places.
  6. Memory: 4 GB. The old website says 2 GB.
  7. Storage: 32 GB, microSD up to 64 GB. The old website says 16 GB.
  8. Working temperature: 0 to 45 °C. The old website says 0 to 50.

Windows 10 version: Made to order with Windows 10 Pro (32 bit) on an Intel Celeron J1900. There is no data sheet for the Windows version yet, so its specification is to confirm.

Downloads for VOR-10.1-M-A

Datasheet4 pages Android 9, Rev 2.0 May 2022 PDF 202 KB Open
Installation and user manual20 pages Android 9, v2.1 Jul 2022 PDF 654 KB Open
DatasheetEarlier version Android 8.1 May 2022 PDF 202 KB Open
Installation and user manualEarlier version Android 8.1, Rev 1.1 May 2022 PDF 473 KB Open

Cut-out drawings in DXF and 3D models in STEP are not published yet. Ask us and we send what we have.

Works with

Any controller that serves an HTML5 page, including:

Trend IQTridium NiagaraDistechiSMACylonInnotech OmniCentraLineDEOSEasyIO
