ScreensVorex 10 Plastic
VOR-10-PS / VOR-10-PF
Vorex 10 Plastic

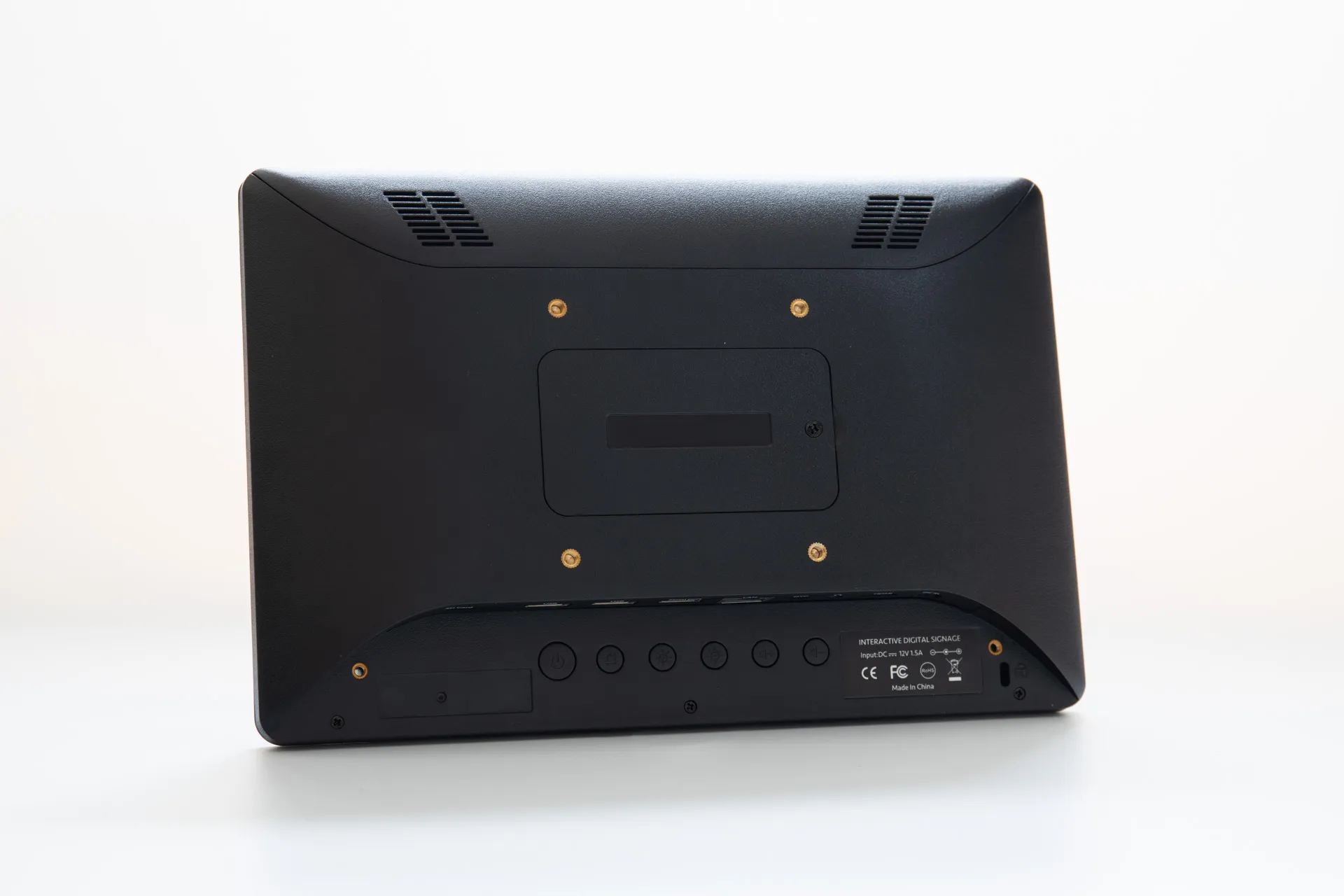

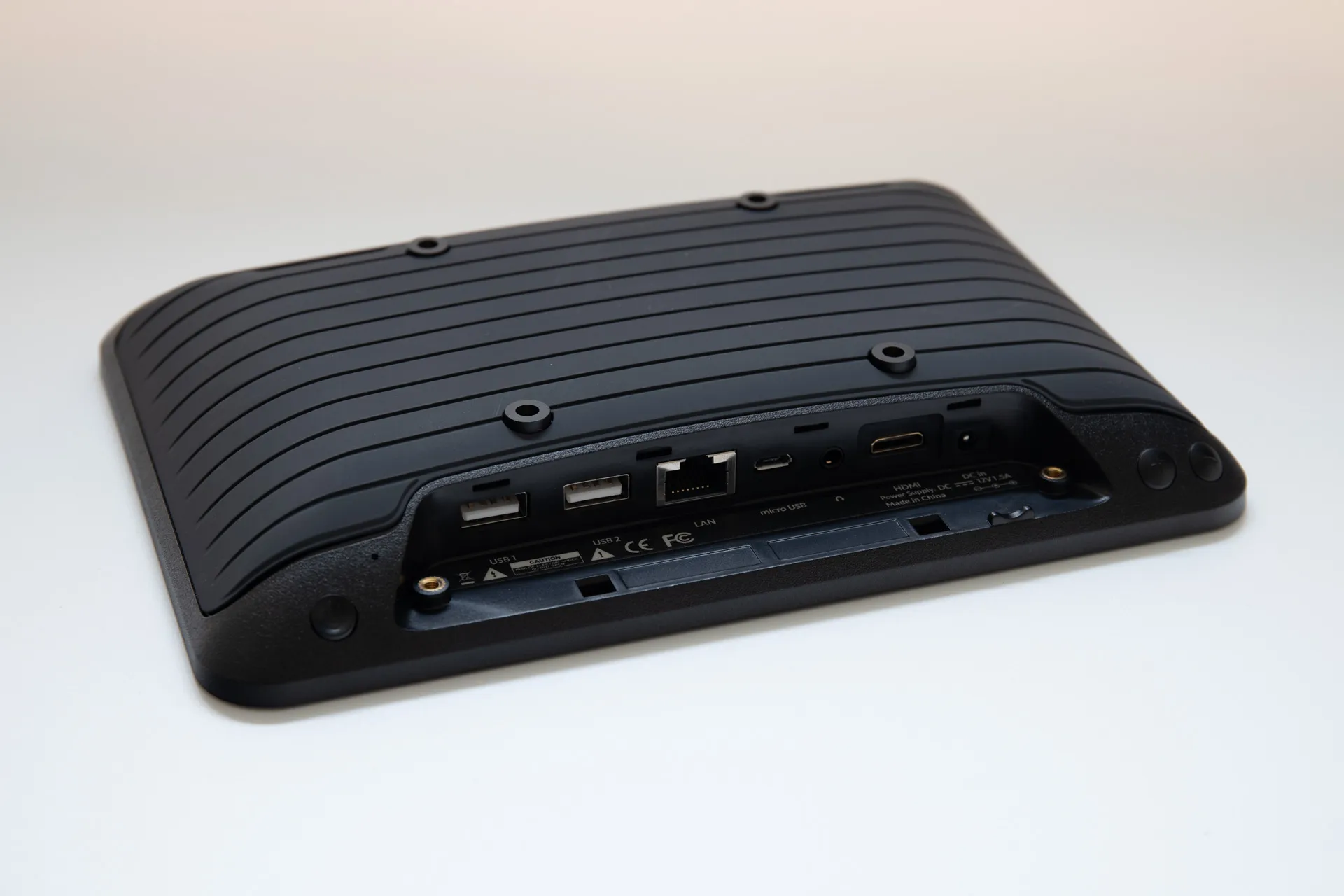

A 10 inch Android touchscreen in a black plastic case. Surface mount, or flush mount with trim. Powers from 12 V DC or over PoE+.
Add to order
Trade price confirmed with your order
We confirm price, stock and delivery by email within one working day. Nothing is charged online.
Prices and stock: +44 (0)1252 669317, or ask for trade prices.
10 IN1280 x 800
IP54front panel
RK32881.8 GHz
ANDROID 10Vorex App
POE+on the LAN port
12 V DCadaptor included
Surface or flush, and the cut-out to confirm.
Fix it on the surface, or cut the door and flush mount it with the trim and 4 mm bolts supplied.
The manual lists the 8 inch cut-out for this model, which looks copied. The flush cut-out is to confirm; the surface outline is from the data sheet.
Specifications
From the VOR-10-PS datasheet (Android 10, Jun 2022) and the matching manual.
Display
Connections
- Network
- RJ45, Wi-Fi 802.11 b/g/n, Bluetooth 4.2

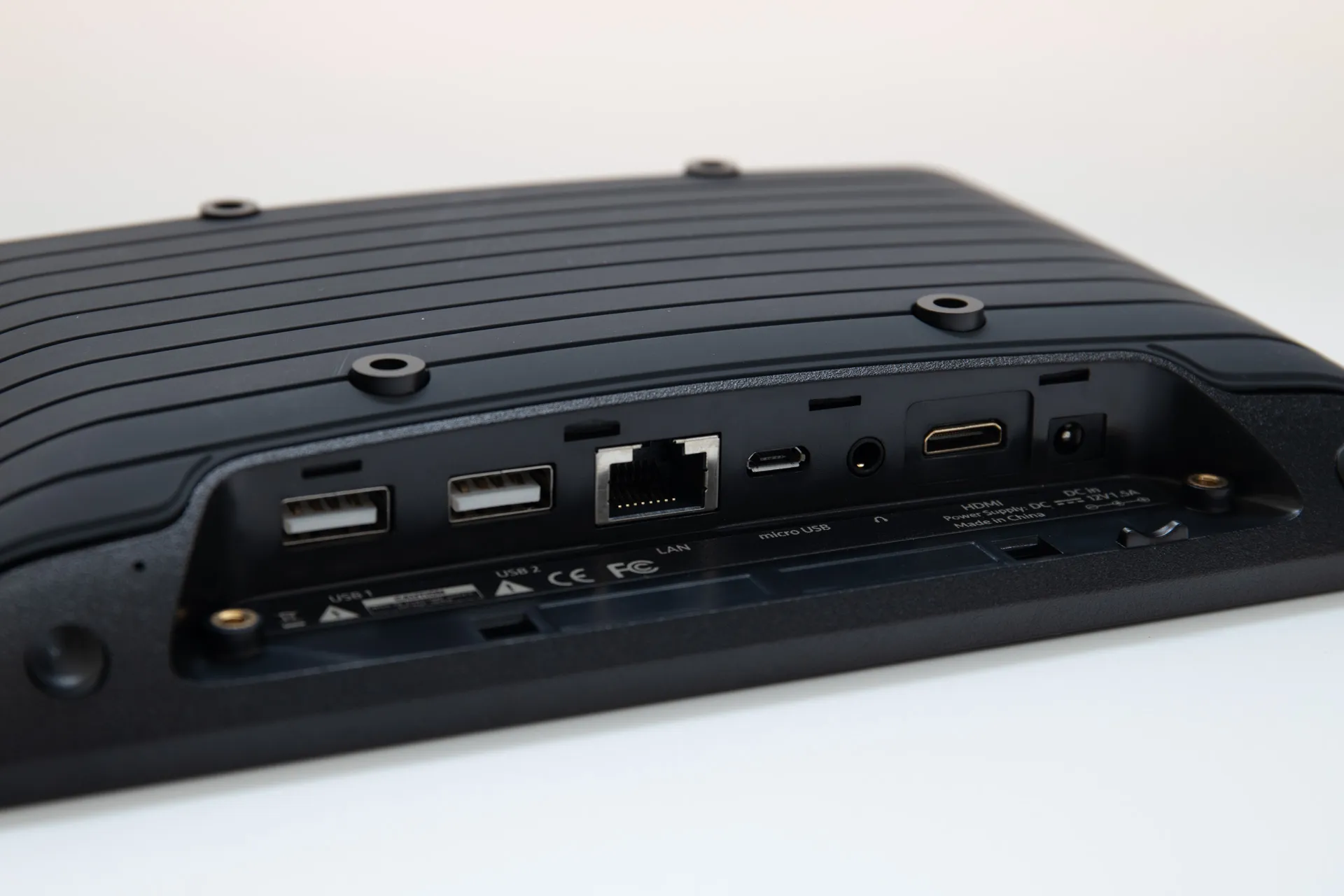

- Ports
- 2 x USB 2.0, 1 x HDMI, micro USB OTG, SD card
- Audio
- 2 x 3 W speakers
Mechanical
- Outline, surface
- 255 x 172 x 29 mm
- Panel cut-out
- to confirm3
- Case
- Plastic, black
- Mounting
- Surface, or flush with trim and 4 mm bolts; VESA 75 optional
- Weight
- 0.762 kg without packaging or power supply
Computer
- Processor
- RK3288, quad core A17, 1.8 GHz
- Memory
- 2 GB
- Storage
- to confirm4
- Software
- Android 10, Vorex App, kiosk lock
Power and environment
- Power
- 12 V DC 1.5 A, adaptor for 100 to 230 V AC
- PoE
- PoE+ IEEE 802.3at, class 4, on the LAN port
- Working temperature
- to confirm5
- Ambient
- -10 to 60 °C
- Front rating
- IP54, front panel only
Approvals and warranty
- Approvals
- CE, FCC, RoHS
- Warranty
- 12 months
To confirm with Vorex
- Screen: 10 in IPS. The data sheet says 10.1.
- Contrast: 600:1 and 1000:1 are both published.
- Panel cut-out: Vorex has not settled this figure.
- Storage: 16 GB eMMC, SD card. The SD limit is 32 or 64 GB.
- Working temperature: 0 to 45 °C. The old website says 0 to 50.
Downloads for VOR-10-PS
Datasheet4 pages Open
Installation and user manual20 pages Open
Installation and user manualEarlier version Open
DatasheetEarlier version Open
Installation and user manualEarlier version; the cover reads VOR-08 Open
Cut-out drawings in DXF and 3D models in STEP are not published yet. Ask us and we send what we have.
Works with
Any controller that serves an HTML5 page, including:
